Water

Clear Reinforced PVC

POLAR BEAR PART NUMBER
HNRV
Application
Air, drinking water, mild chemicals and alkalis.
Construction

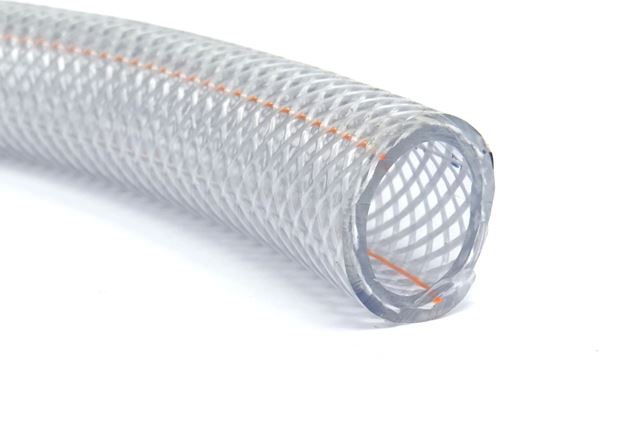

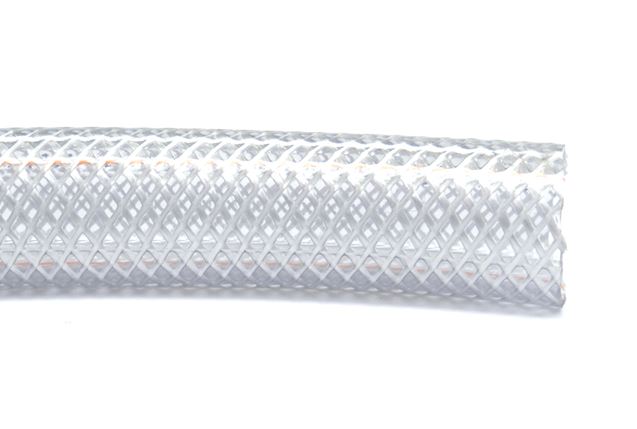

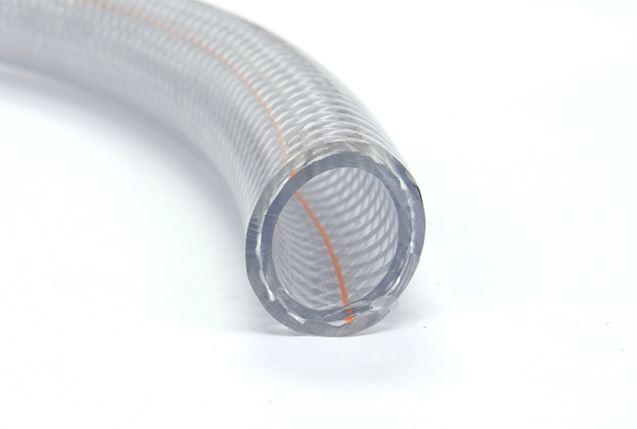

Tube- Clear smooth PVC. Reinforcement- High tensile synthetic braid. Cover- Clear, smooth PVC
Temperature Range
-4°C to +65°C (+25°F to +150°F)
Part NumberI.D. InchesO.D. InchesMAX W.P. (PSI)Approx. Wt. Per. Ft. Lbs.
HNRV0183/160.3752500.04
HNRV0251/40.4382500.06
HNRV0315/160.5312500.08
HNRV0373/80.5942250.09
HNRV0501/20.7502000.13
HNRV0625/80.8912000.18
HNRV0753/41.0311500.22
HNRV10011.3001250.30
HNRV1251-1/41.6201000.45
HNRV1501-1/21.9381000.64
HNRV20022.490750.94
