An all purpose petroleum suction and discharge hose used for gasoline, distillate, kerosene, diesel, oil suspensions, emulsions and other petroleum products with up to a maximum of 50% aromatic content. Also used as a hydraulic suction return line and is suitable for full vacuum service.

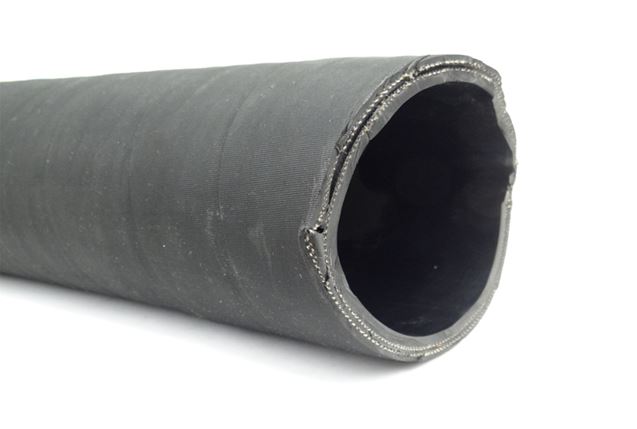

Tube - Smooth black nitrile rubber for maximum oil resistance. Reinforcement - Single wire helix on 3/4” and 1” with 1-1/4” and above having a dual wire helix embedded between layers of synthetic high tensile cord. All sizes come c/w an antistatic wire. Cover - Smooth black oil, weather and abrasion resistant nitrile rubber/PVC blend.
-35°C to +70°C (-31°F to +160°F)
| Part Number | I.D. Inches | O.D. Inches | MAX W.P. (PSI) | Approx. Wt. Per. Ft. Lbs. |
| HTT075 | 3/4 | 1.19 | 150 | 0.45 |
| HTT100 | 1 | 1.42 | 150 | 0.58 |
| HTT125 | 1-1/4 | 1.70 | 150 | 0.78 |
| HTT150 | 1-1/2 | 1.97 | 150 | 0.89 |
| HTT200 | 2 | 2.48 | 150 | 1.15 |
| HTT250 | 2-1/2 | 2.95 | 150 | 1.40 |
| HTT300 | 3 | 3.53 | 150 | 1.92 |
| HTT350 | 3-1/2 | 4.06 | 150 | 2.37 |
| HTT400 | 4 | 4.75 | 150 | 3.20 |
| HTT500 | 5 | 5.79 | 150 | 5.73 |
| HTT600 | 6 | 6.85 | 150 | 5.89 |
