Petroleum & Oilfield

Fuel Delivery

POLAR BEAR PART NUMBER
HFDxxxGA
Application
For conveying oil, gasoline, fuel oil and other petroleum derived products. This hose is non conductive.
Construction

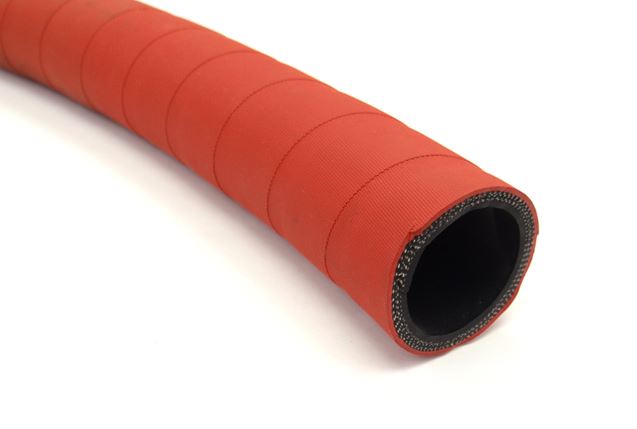

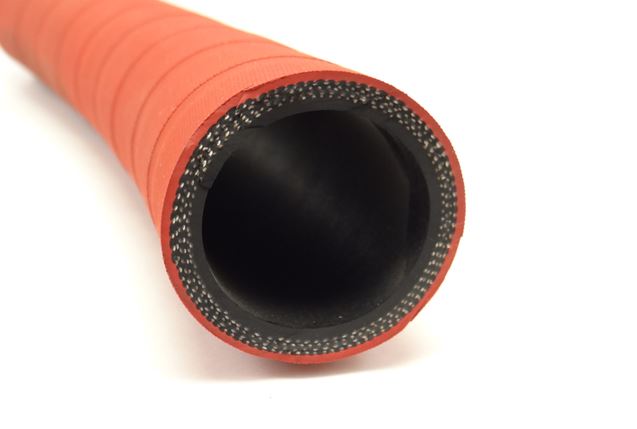

Tube- Oil resistant black nitrile. Reinforcement- layers of spiralled synthetic yarn. Cover- Red oil and abrasion resistant nitrile/PVC blend.
Temperature Range
-29°C to +82°C (-20°F to +180°F)
Part NumberI.D. InchesO.D. InchesMAX W.P. (PSI)Approx. Wt. Per. Ft. Lbs.
HFD025GA1/40.633000.18
HFD037GA3/80.723000.20
HFD050GA1/20.883000.27
HFD075GA3/41.163000.43
HFD100GA11.433000.65
HFD125GA1-1/41.782500.75
HFD150GA1-1/22.032500.88
