FLEX-TUBE PU
POLAR BEAR PART NUMBER
HDXXXFLXTUBEPU
PRODUCT INFORMATION

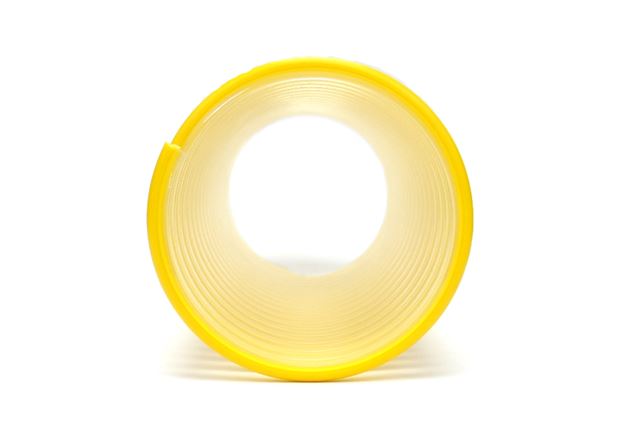

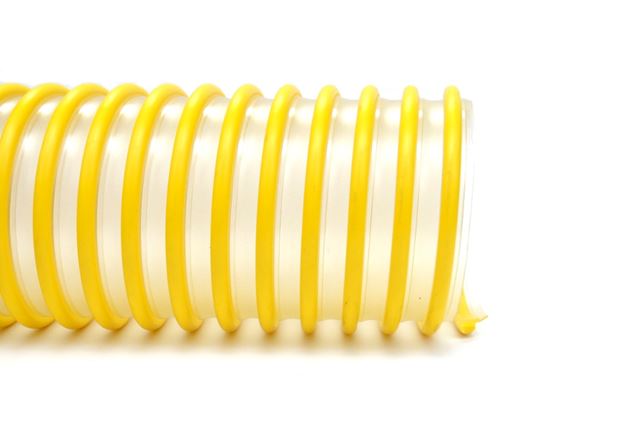

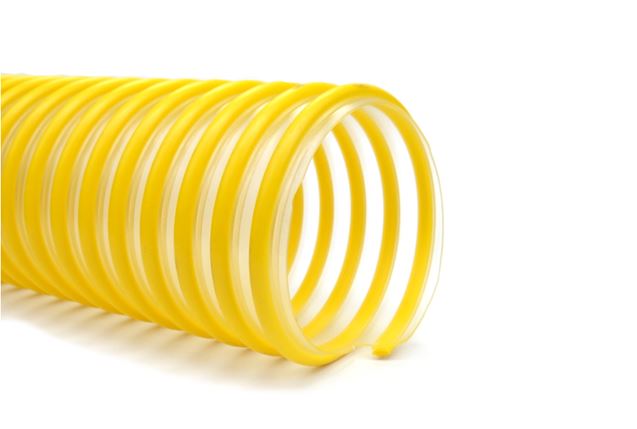

Medium weight clear co-extruded thermoplastic ether based polyurethane hose with a rigid yellow external ABS helix
FEATURES
Ultra smooth interior assures efficient airflow
Great abrasion resistance
Excellent wear performance
Puncture & tear resistant with high tensile strength
Good low temperature flexibility
Crush resistant
Spiral co-extruded engineered construction
Helix acts as a wearstrip
Excellent hydrolysis & microbial resistance
TEMPERATURE RANGE
-40°C to +93°C (-40°F to +200°F)
COLOUR
Clear with a yellow helix
| Part Number | I.D. Inches | WALL THICKNESS (INCHES) | WORKING PRESSURE (PSI) | VACUUM RATING (HG) | BEND RADIUS | Approx. Wt. Per. Ft. Lbs. |
| HD200FLXTUBEPU | 2 | 0.32 | 37 | 28 | 2.8 | 0.34 |
| HD250FLXTUBEPU | 2-1/2 | 0.32 | 35 | 28 | 3.7 | 0.4 |
| HD300FLXTUBEPU | 3 | 0.33 | 32 | 26 | 3.7 | 0.46 |
| HD400FLXTUBEPU | 4 | 0.33 | 28 | 20 | 6 | 0.75 |
| HD500FLXTUBEPU | 5 | 0.33 | 23 | 16 | 5.5 | 0.83 |
| HD600FLXTUBEPU | 6 | 0.35 | 24 | 10 | 6.5 | 0.92 |
| HD700FLXTUBEPU | 7 | 0.35 | 21 | 9 | 7.5 | 1.16 |
| HD800FLXTUBEPU | 8 | 0.35 | 22 | 8 | 8.5 | 1.32 |
| HD900FLXTUBEPU | 9 | 0.4 | 20 | 7 | 9.25 | 1.53 |
| HD1000FLXTUBEPU | 10 | 0.4 | 16 | 6 | 9.5 | 1.65 |
| HD1200FLXTUBEPU | 12 | 0.4 | 10 | 5 | 10 | 2.2 |
