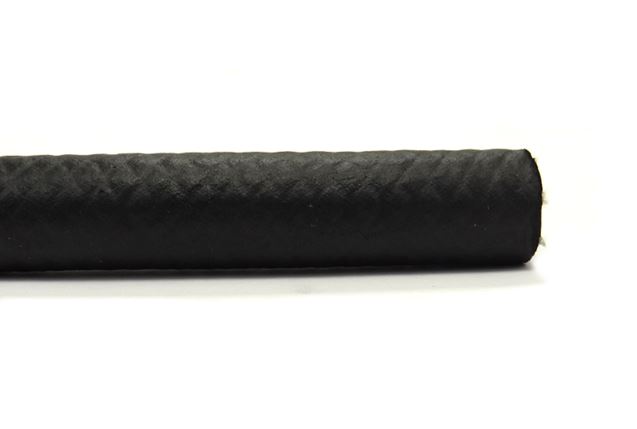

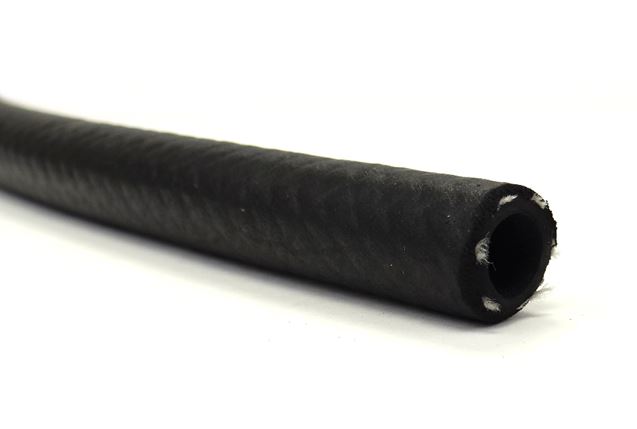

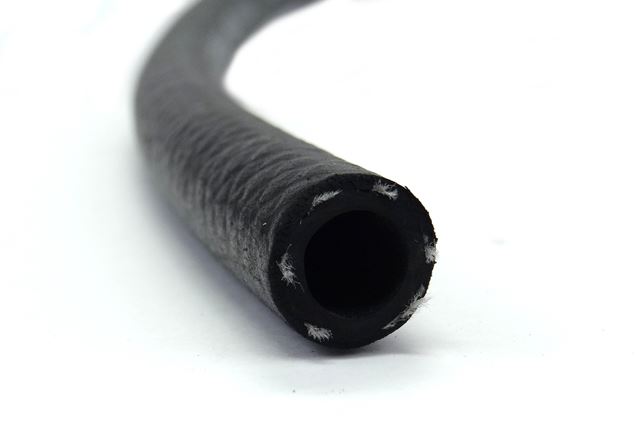

This durable, quality-made hose is similar to the SAE J30R7 specifications. It is used for conveying most current types of fuels in automobiles, trucks and buses. This hose is also an aftermarket standard. It provides excellent service for original equipment, wholesalers, aftermarket packagers and auxiliary tank manufacturers. This hose provides superior temperature service and operates in a wide range from -29°F to +257°F. It features an NBR tube and an NBR/PVC cover reinforced with multiple spiral polyester. This combination helps keep the hose flexible while standing up to oil, grease, ozone and under-hood temperatures generated by today’s automotive engines.
Tube: NBR, RMA Class A. Cover: NBR/PVC, RMA Class B. Reinforcement: Spiral polyester yarn.
-34°C to +125°C (-29°F to +257°F)
| Part Number | I.D. Inches | O.D. Inches | MAX W.P. (PSI) | Approx. Wt. Per. Ft. Lbs. |
| HFL018 | 3/16 | 0.41 | 50 | 0.07 |
| HFL025 | 1/4 | 0.50 | 50 | 0.09 |
| HFL031 | 5/16 | 0.56 | 50 | 0.11 |
| HFL037 | 3/8 | 0.63 | 50 | 0.12 |
