Agricultural

Drill Fill

POLAR BEAR PART NUMBER
HUFD
Product Information

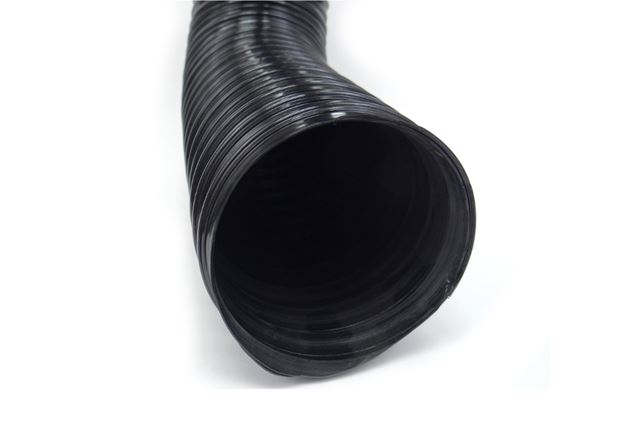

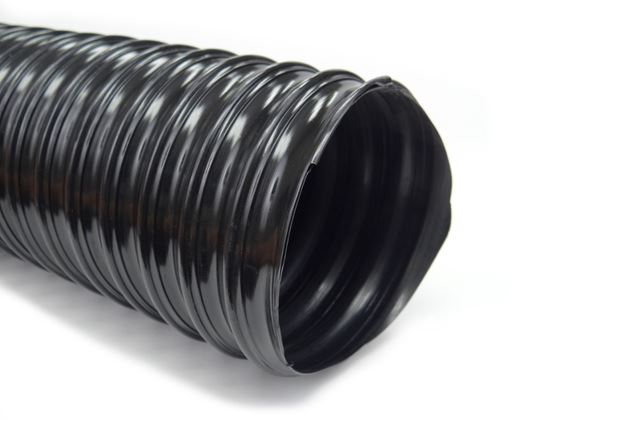

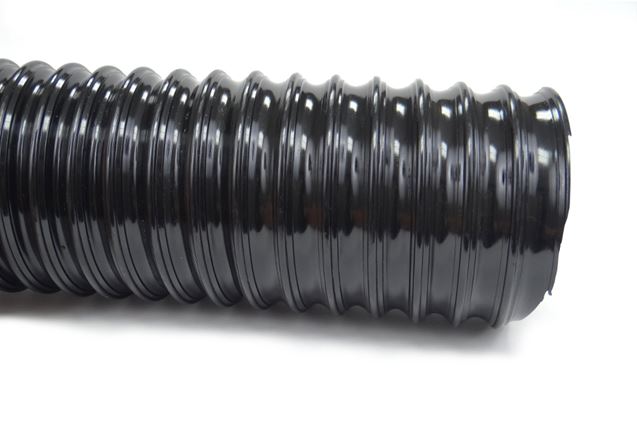

FLX-THANE MD - Durable urethane hose has excellent resistance to abrasion, cutting and gouging for a long product life. It is reinforced with a bronze coated spring steel helix, it maintains its excellent flexing characteristics even in the roughest conditions. The ideal hose for lightweight materials handling. Wall thickness= .030".
Temperature Range
-54°C to +107°C (-65°F to +225°F)
Colour
Black or Clear
Notes
*Clear is made from FDA approved Materials. Pressure is based on straight lengths of hose @ 72°F ***Available in Light, Medium, Heavy & Very Heavy Duty***
Part NumberI.D. InchesMAX W.P. (PSI)Vacuum Rating (HG)BEND RADIUS (INCH)Approx. Wt. Per. Ft. Lbs.
HUFD-2002302920.25
HUFD-2502-1/230292.50.32
HUFD-3003292930.40
HUFD-3503-1/228223.50.52
HUFD-4004252940.70
HUFD-5005221750.90
HUFD-6006191561.00
HUFD-7007161271.20
HUFD-800814981.50
HUFD-900912591.55
HUFD-10001011481.60
HUFD-120012102.2102.00
HUFD-14001483.3122.50
HUFD-16001672.2143.00
HUFD-18001861.4163.30
