NITRILE

POLAR BEAR PART NUMBER

HMPxxxGAPMx

Application

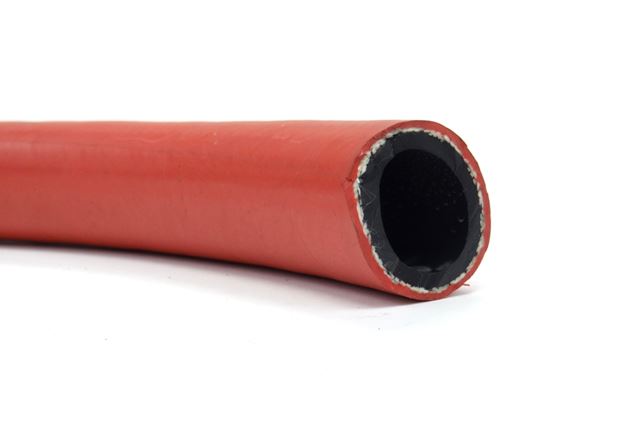

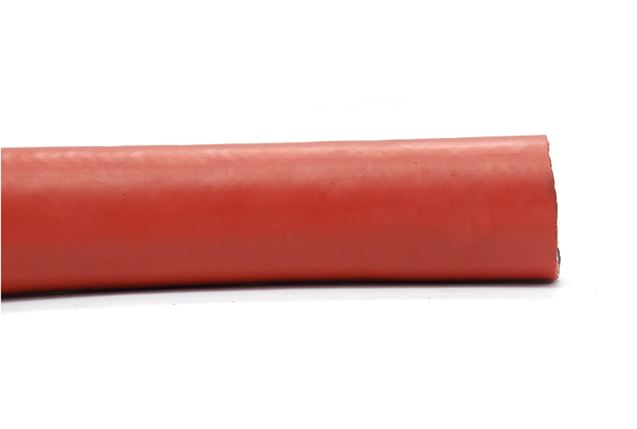

A premium grade braided hose, with excellent flexibility and maximum resistence to air, water, petroleum oils, gasoline, kerosene and fuel oil.

Construction

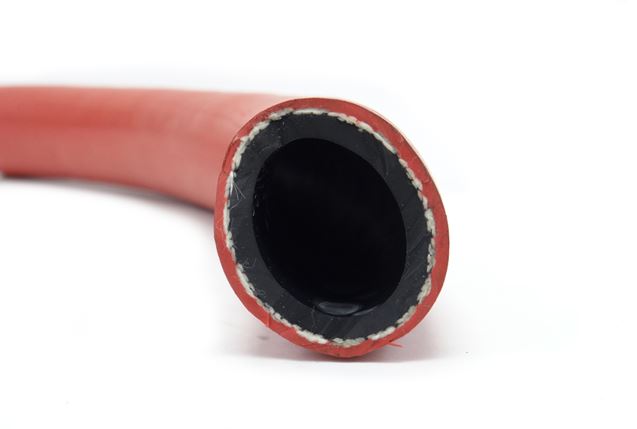

Tube- Nitrile. Reinforcement- Braided, high tensile synthetic textile cord. Cover-Nitrile.

Temperature Range

-40°C to +100°C (-40°F to +212°F)

Colour

Red

Part Number	I.D. Inches	O.D. Inches	MAX W.P. (PSI)	Approx. Wt. Per. Ft. Lbs.
HMP025GAPM1	1/4	0.50	315	0.09
HMP025GAPM2	1/4	0.62	500	0.14
HMP031GAPM1	5/16	0.62	315	0.13
HMP031GAPM2	5/16	0.69	500	0.17
HMP037GAPM1	3/8	0.69	315	0.15
HMP037GAPM2	3/8	0.75	500	0.18
HMP050GAPM1	1/2	0.84	315	0.20
HMP050GAPM2	1/2	0.88	500	0.23
HMP062GAPM1	5/8	0.94	315	0.22
HMP062GAPM2	5/8	1.00	500	0.27
HMP075GAPM1	3/4	1.09	315	0.28
HMP075GAPM2	3/4	1.19	500	0.38
HMP100GAPM1	1	1.38	315	0.41
HMP100GAPM2	1	1.50	500	0.55
HMP125GAPM1	1-1/4	1.75	315	0.67
HMP125GAPM2	1-1/4	1.75	500	0.67
HMP150GAPM1	1-1/2	2	315	0.78
HMP150GAPM2	1-1/2	2	500	0.78
