CW-GP
POLAR BEAR PART NUMBER
HCWCXXX
PRODUCT INFORMATION

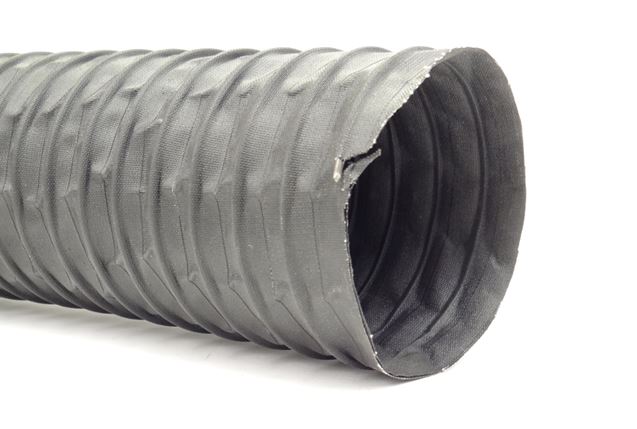

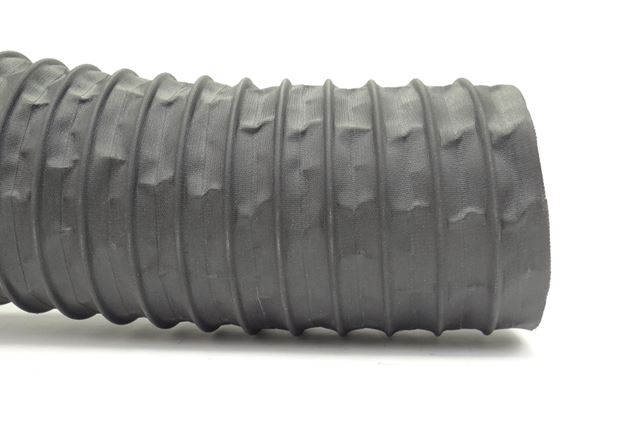

CW-GP-Double ply neoprene impregnated polyester fabric hose construction, reinforced with a spring steel wire helix. It has excellent crush resistance and tensile strength. The neoprene coating offers excellent abrasion and chemical resistance. Handles positive and negative pressure and is extremely flexible. More durable than double ply cotton hose. CW-GP is UL-94V-0 flame retardant.
TEMPERATURE RANGE
-40°C to +121°C (-40°F to +250°F)
Colour
Black
| Part Number | I.D. Inches | MAX W.P. (PSI) | VACUUM RATING (HG) | BEND RADIUS (INCH) | Approx. Wt. Per. Ft. Lbs |
| HCWC200 | 2 | 30 | 29 | 2 | 0.25 |
| HWCW250 | 2-1/2 | 30 | 29 | 1.8 | 0.29 |
| HCWC300 | 3 | 30 | 29 | 2.4 | 0.34 |
| HCWC350 | 3-1/2 | 30 | 29 | 2.5 | 0.4 |
| HCWC400 | 4 | 30 | 29 | 3.1 | 0.56 |
| HCWC500 | 5 | 17 | 17 | 3.5 | 0.75 |
| HCWC600 | 6 | 11 | 21 | 4.5 | 0.95 |
| HCWC700 | 7 | 8 | 14 | 5 | 0.99 |
| HCWC800 | 8 | 6.5 | 12 | 6 | 1.1 |
| HCWC900 | 9 | 6 | 9 | 6.5 | 1.2 |
| HCWC1000 | 10 | 5 | 9 | 7.5 | 1.3 |
| HCWC1200 | 12 | 4.3 | 4 | 8 | 1.5 |
| HCWC1400 | 14 | 3.6 | 3.7 | 10 | 2.2 |
| HCWC1600 | 16 | 3.2 | 2.5 | 12 | 2.5 |
| HCWC1800 | 18 | 3 | 1.8 | 13 | 2.8 |
