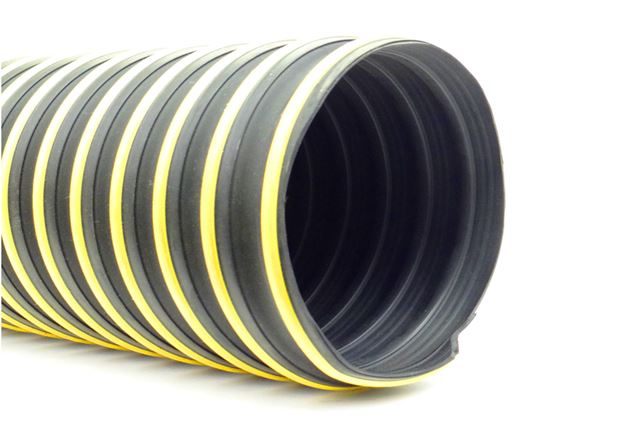

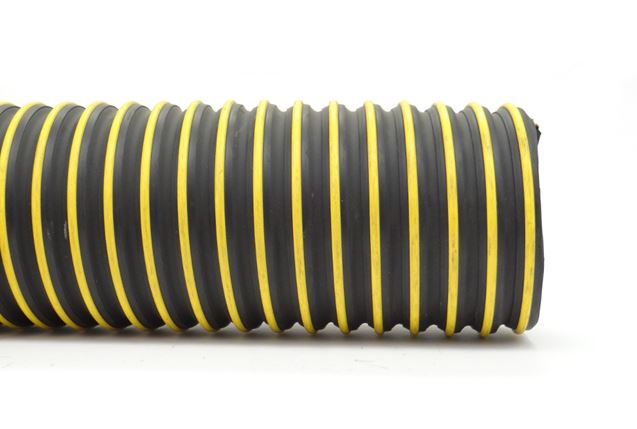

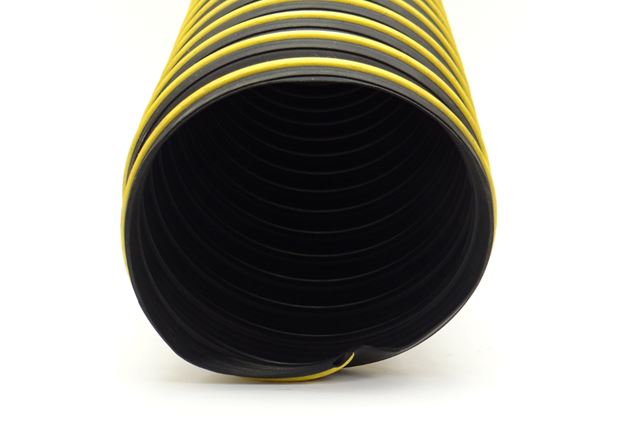

T-7 is a thermoplastic rubber (TPR) hose designed for applications requiring higher temperature ranging from -40°C to +135° (-40°F to +275°F) while maintaining flexibility. It's designed with a medium weight wall and provides optimum resistance to abrasion, extreme moisture and broad chemical applications. T7 is ozone and UV resistant. Wall thickness= .025
-51°C to +135°C (-60°F to +275°F)
Pressures based on straight lengths of hose @ 72°F
| Part Number | I.D. Inches | WORKING PRESSURE (PSI) | NEGATIVE PRESSURE (HG) | BEND RADIUS | Approx. Wt. Per. Ft. Lbs. |
| HD200-T7 | 2 | 19 | 29 | 2 | 0.25 |
| HD250-T7 | 2-1/2 | 14 | 29 | 2.5 | 0.34 |
| HD300-T7 | 3 | 11 | 29 | 3 | 0.4 |
| HD350-T7 | 3-1/2 | 10 | 29 | 4 | 0.5 |
| HD400-T7 | 4 | 9 | 29 | 5.5 | 0.67 |
| HD500-T7 | 5 | 8 | 17 | 6.5 | 0.85 |
| HD600-T7 | 6 | 7 | 11 | 6 | 0.87 |
| HD700-T7 | 7 | 5 | 9 | 7 | 1 |
| HD800-T7 | 8 | 4.5 | 5.5 | 8 | 1.2 |
| HD1000-T7 | 10 | 4 | 6.5 | 10 | 2.2 |
| HD1200-T7 | 12 | 3.8 | 5 | 12 | 2.7 |
| HD1400-T7 | 14 | 3.2 | 3 | 14 | 3 |
| HD1600-T7 | 16 | 2.6 | 2.3 | 16 | 3.5 |
| HD1800-T7 | 18 | 2.3 | 2 | 18 | 3.9 |
| HD2000-T7 | 20 | 2 | 1.5 | 21 | 4.3 |
| HD2400-T7 | 24 | 1.75 | 0.8 | 25 | 4.8 |
